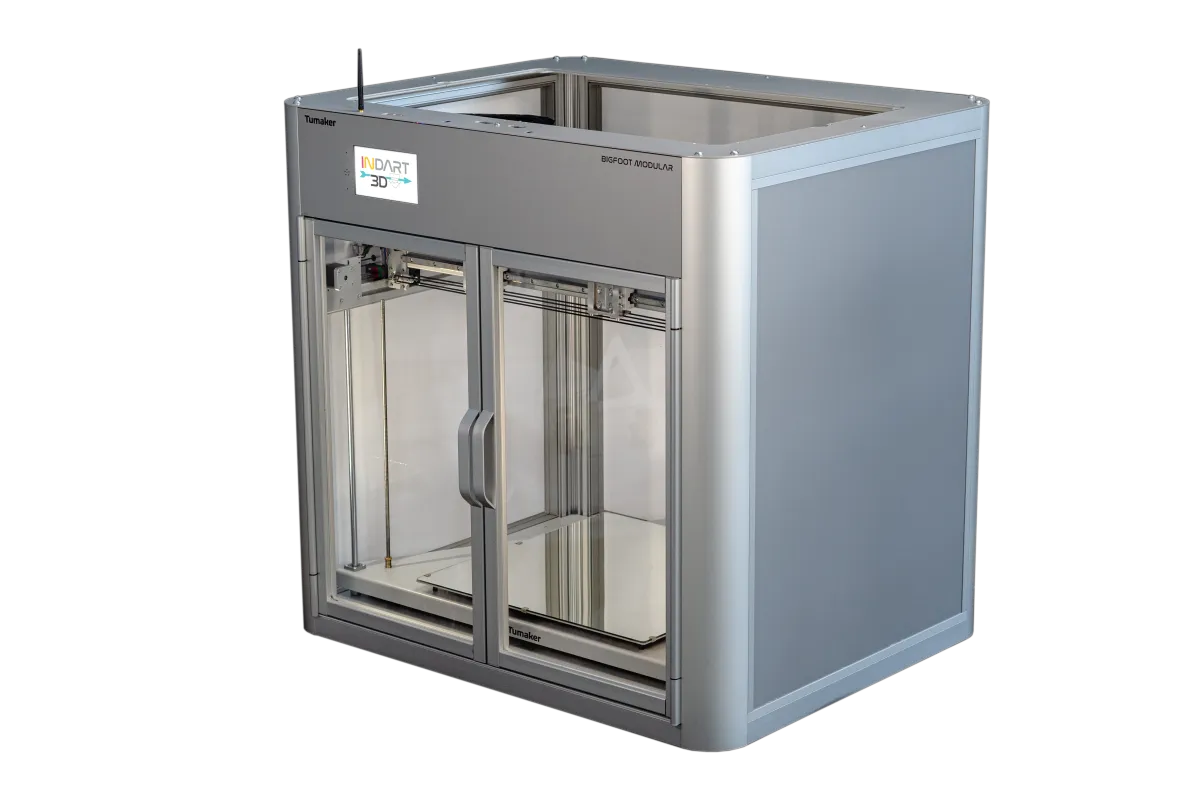

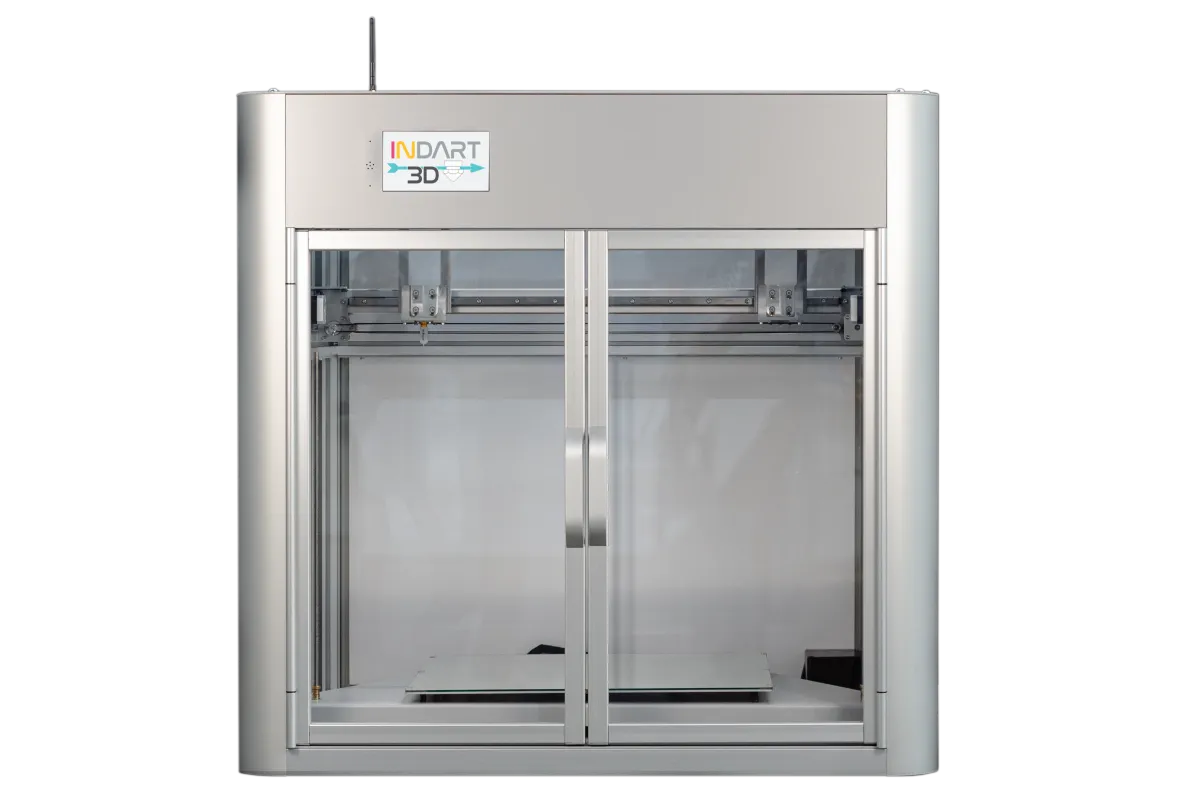

TUMAKER BF MODULAR
( Pellets / Filament)
Modular system of interchangeable and independent heads
Large Format 3D Printer for Demanding Industrial Environments
500 x 500 x 500 mm print volume and modular heads for pellets and filament.

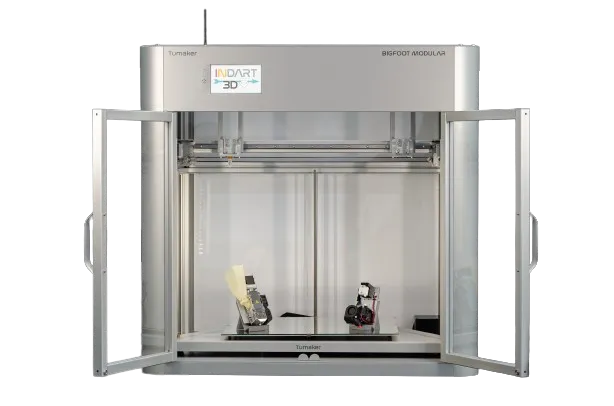

The Tumaker BigFoot 500 Modular 3D printer is a machine that redefines the standards of professional additive manufacturing. With its modular system of interchangeable and independent printheads, it combines the best of printing technology with Pellets and Filament, providing a flexible, robust and efficient solution for the most demanding production and prototyping needs.
Each machine is designed to incorporate two heads. The user, with the advice of our specialists, customises their Tumaker BigFoot 500 modular 3D printer by selecting the number and type of heads that best suit the needs of their project.
Thanks to its advanced design and working area of 500 x 500 x 500 x 500 mm, this printer is designed for large-scale projects, allowing you to produce complex and functional parts with exceptional precision. Its fully enclosed and filter-equipped structure ensures a clean, safe and controlled working environment, ideal for industrial applications.

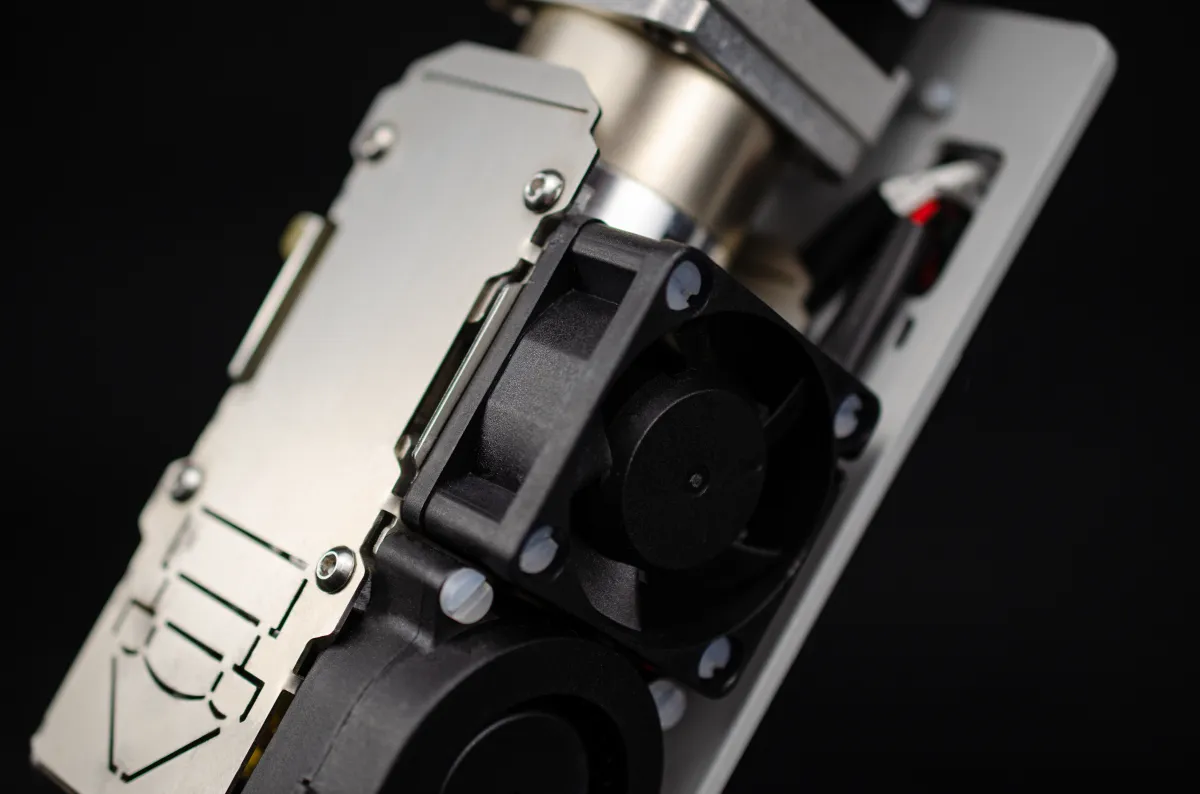

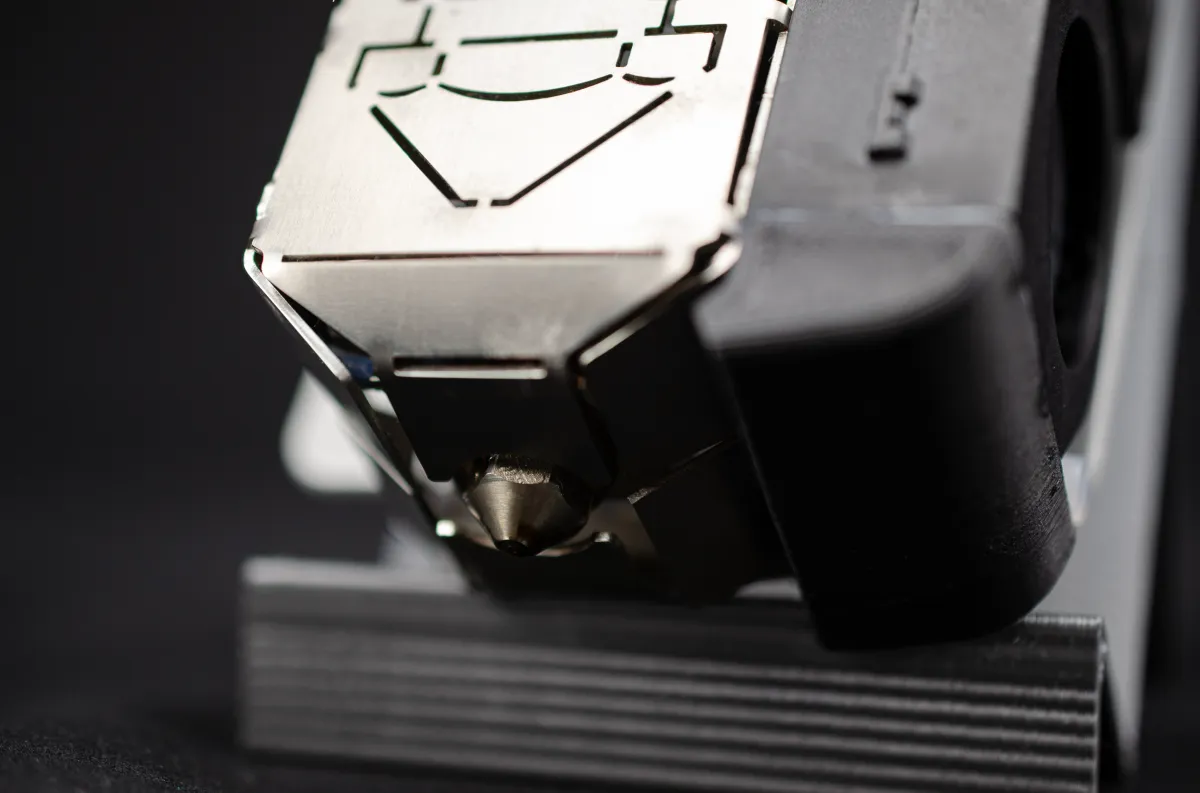

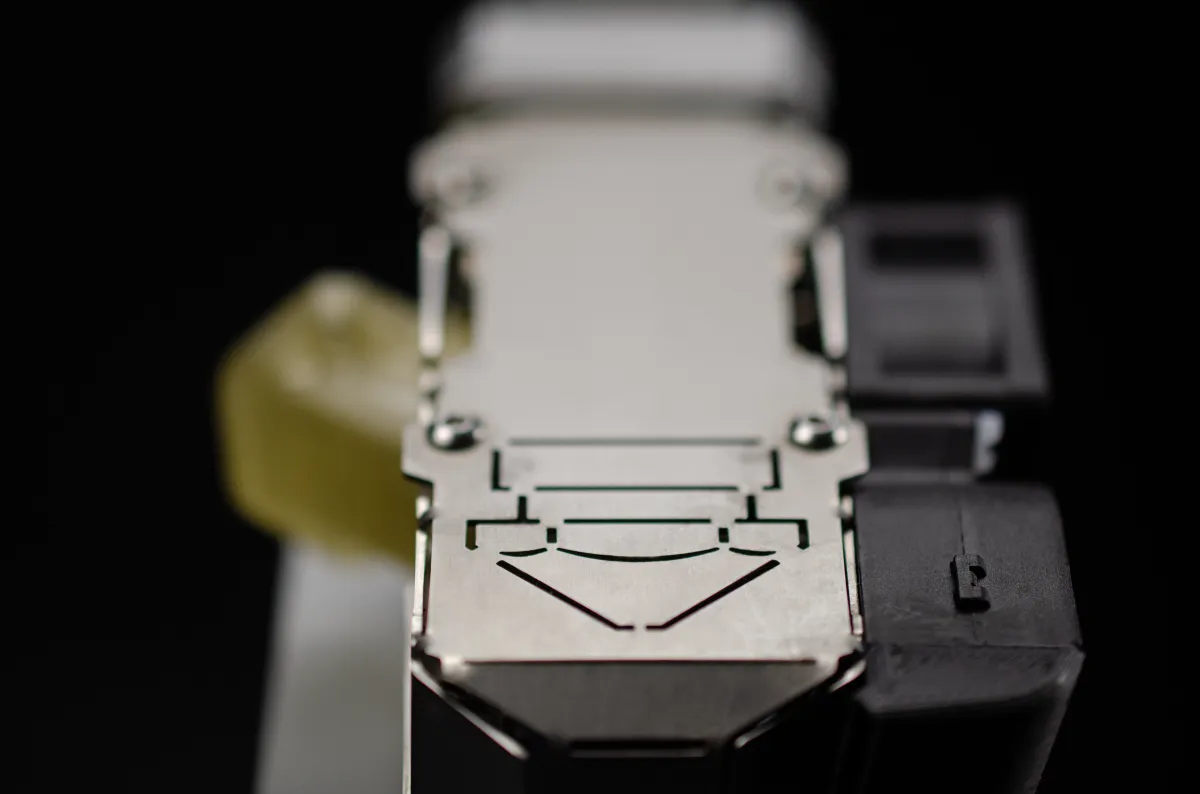

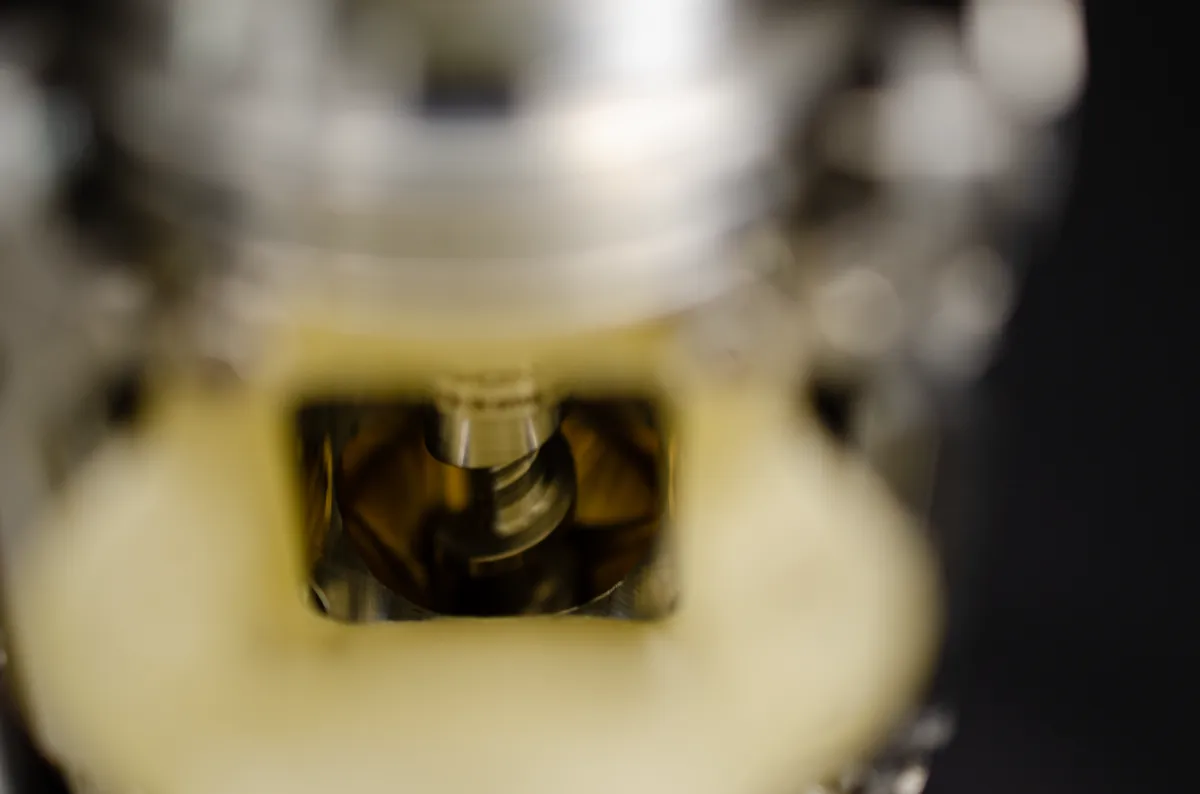

Extrusor de Pellets: Rendimiento y Materiales Avanzados
El extrusor de pellets Modular está diseñado para ofrecer un rendimiento excepcional con una amplia variedad de materiales. Al utilizar pellets como materia prima, este sistema permite a los usuarios explorar nuevas posibilidades en fabricación aditiva, desde polímeros reciclados hasta compuestos técnicos de alta resistencia.
Esta tecnología ofrece la capacidad de producir piezas grandes y detalladas a alta velocidad, optimizando tanto el flujo de trabajo como el control sobre las propiedades finales de los materiales. Ideal para aplicaciones en sectores como la investigación, el diseño industrial, la arquitectura y la educación, el extrusor de pellets se destaca por su versatilidad y capacidad para abordar los proyectos más ambiciosos.

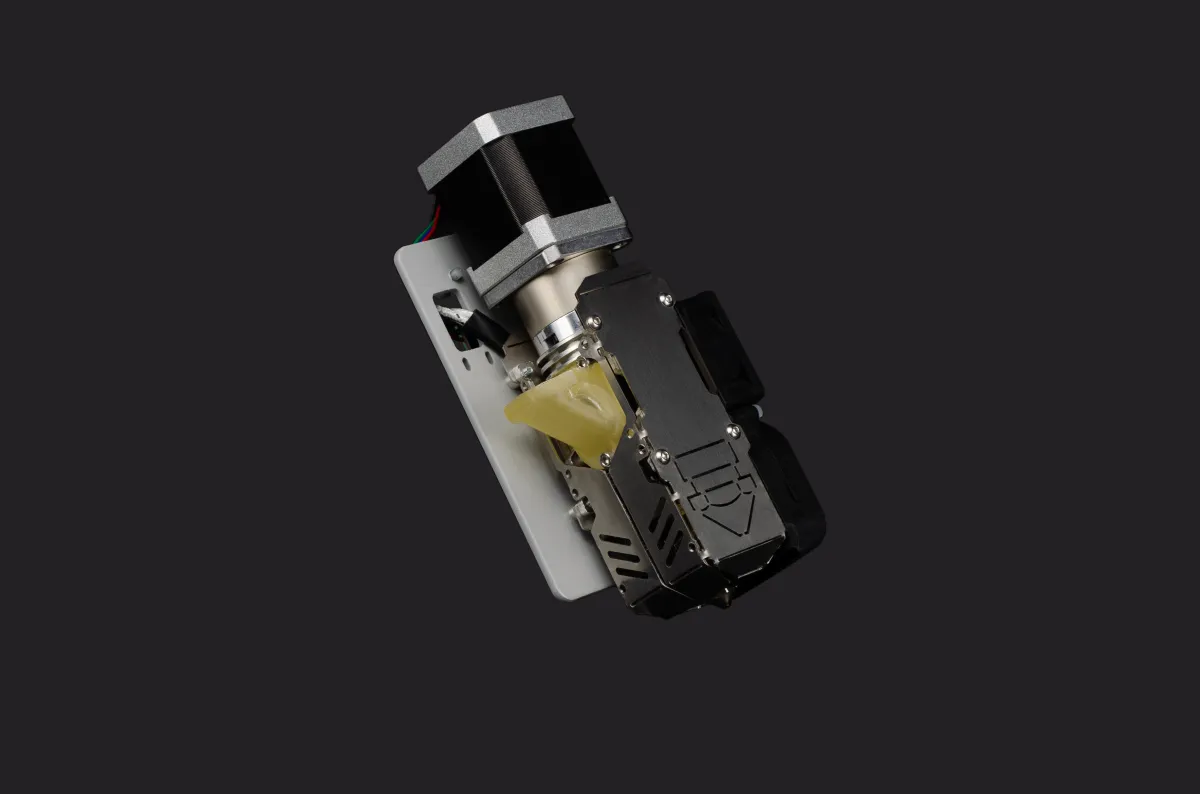

Key Features of the Pellet Extruder
Designed to deliver optimal performance in pellet-based 3D printing
Size
Recommended pellet size: 3–5 mm in diameter.
Compatibility
Compatible with the Pellet Feeder for a constant and uniform material flow.
Temperature
Maximum printhead temperature: up to 300 °C, ideal for technical materials.
Adjustable Nozzles
Compatible nozzle sizes: 0.4 mm | 0.6 mm | 0.8 mm (included) | 2.0 mm | 4.0 mm | 5.0 mm.

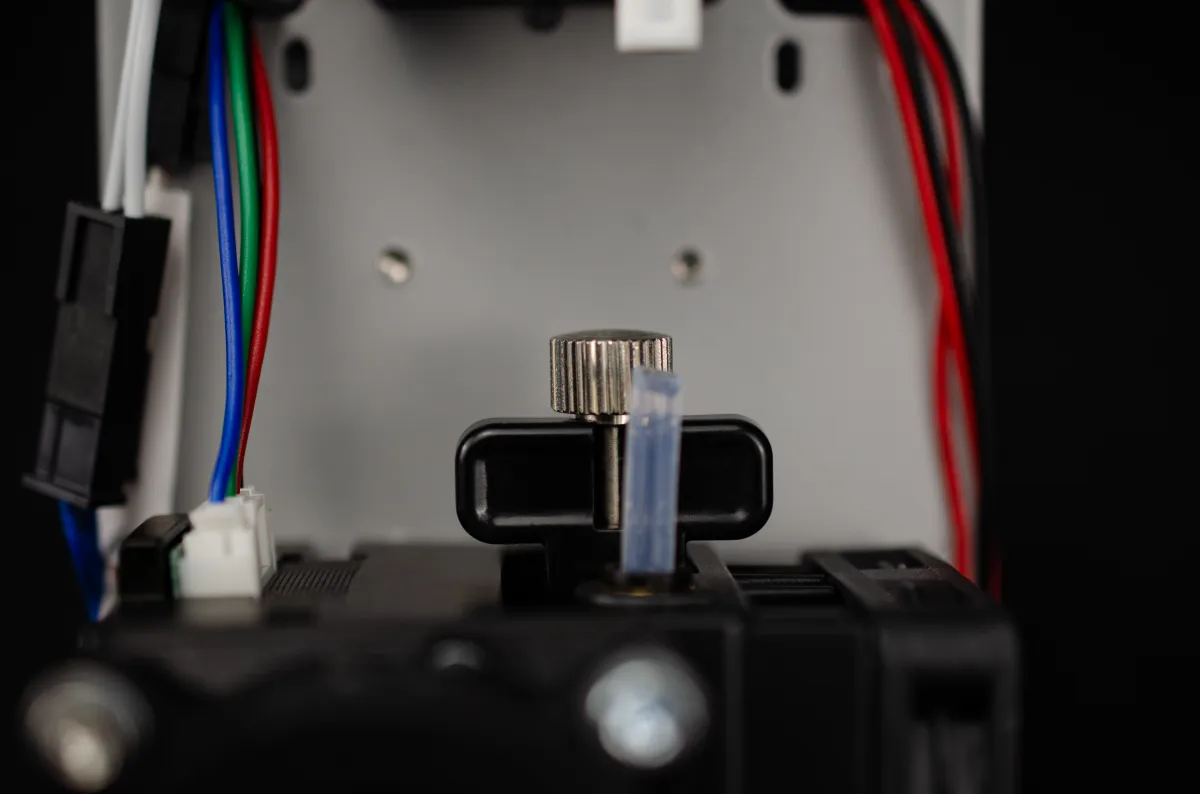

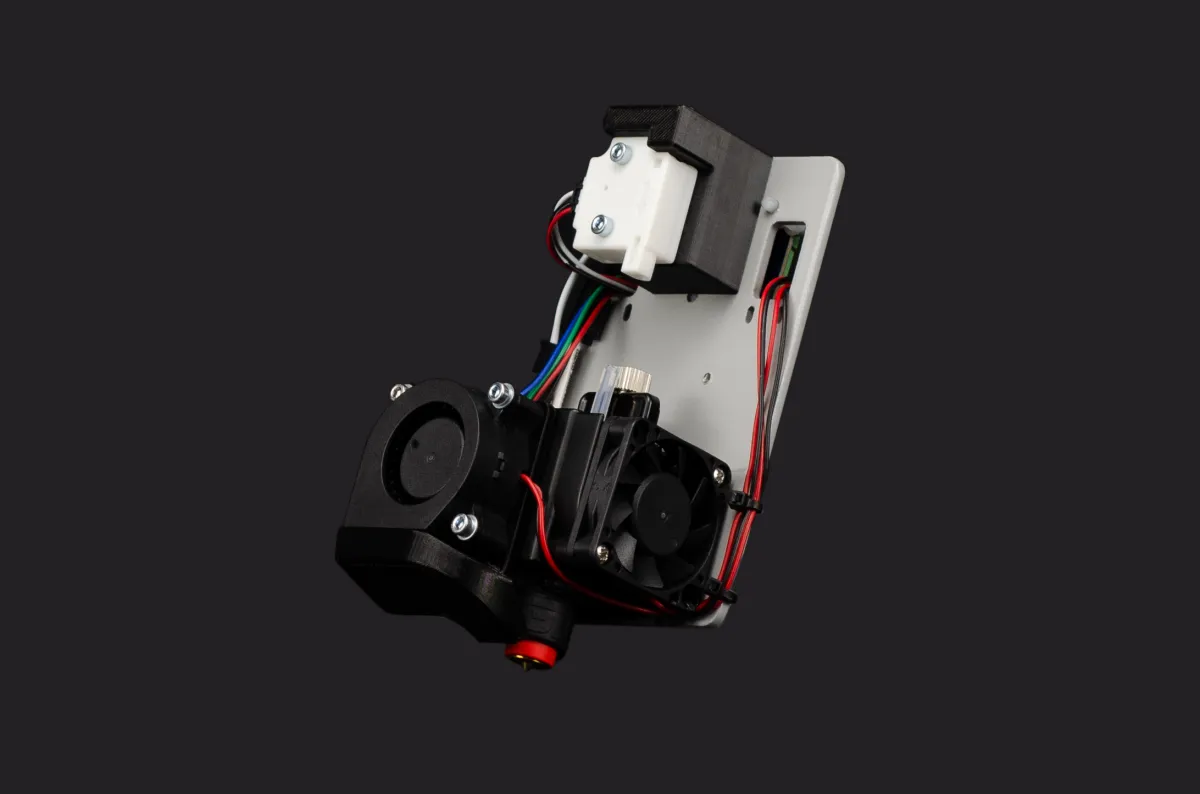

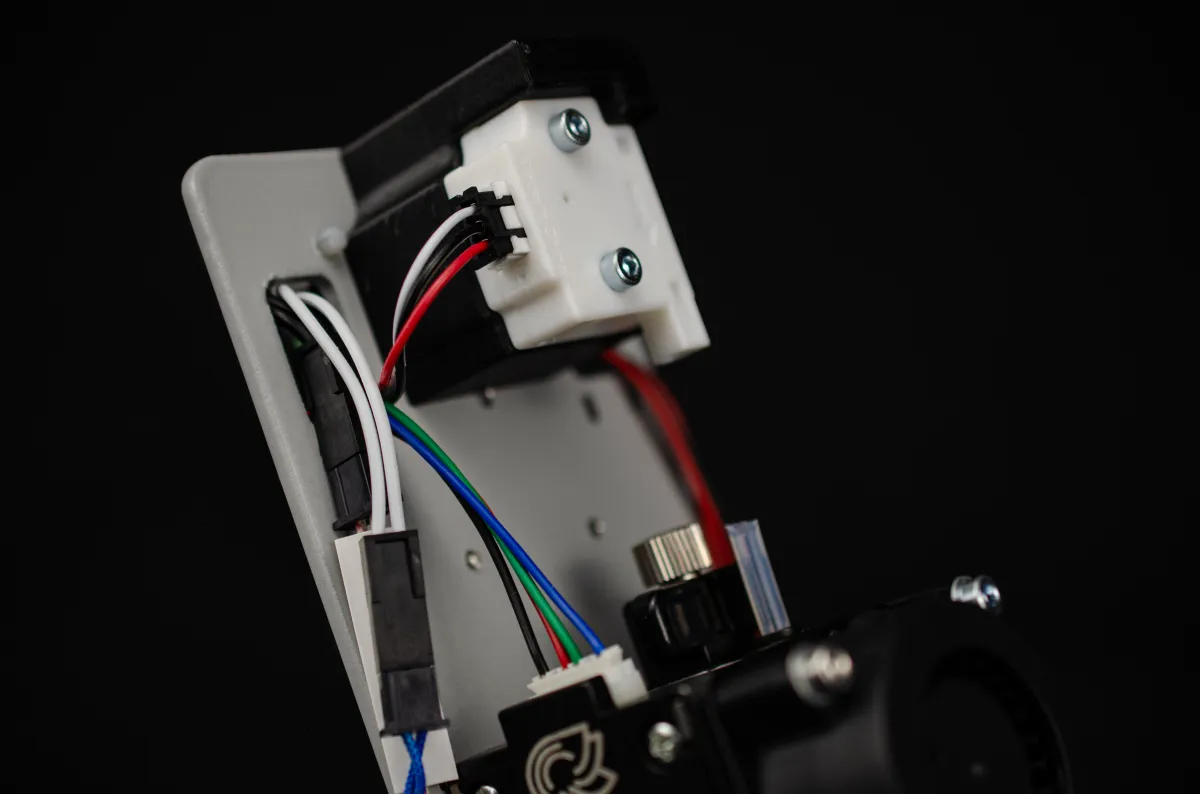

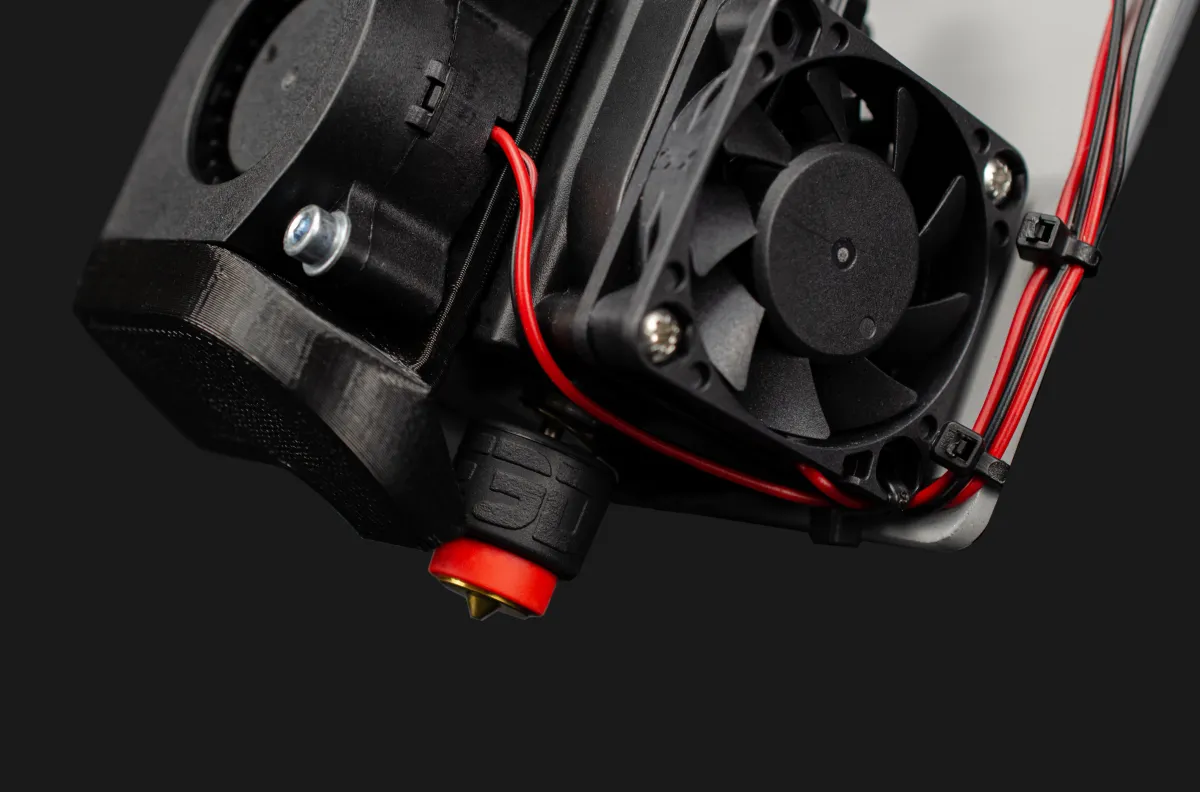

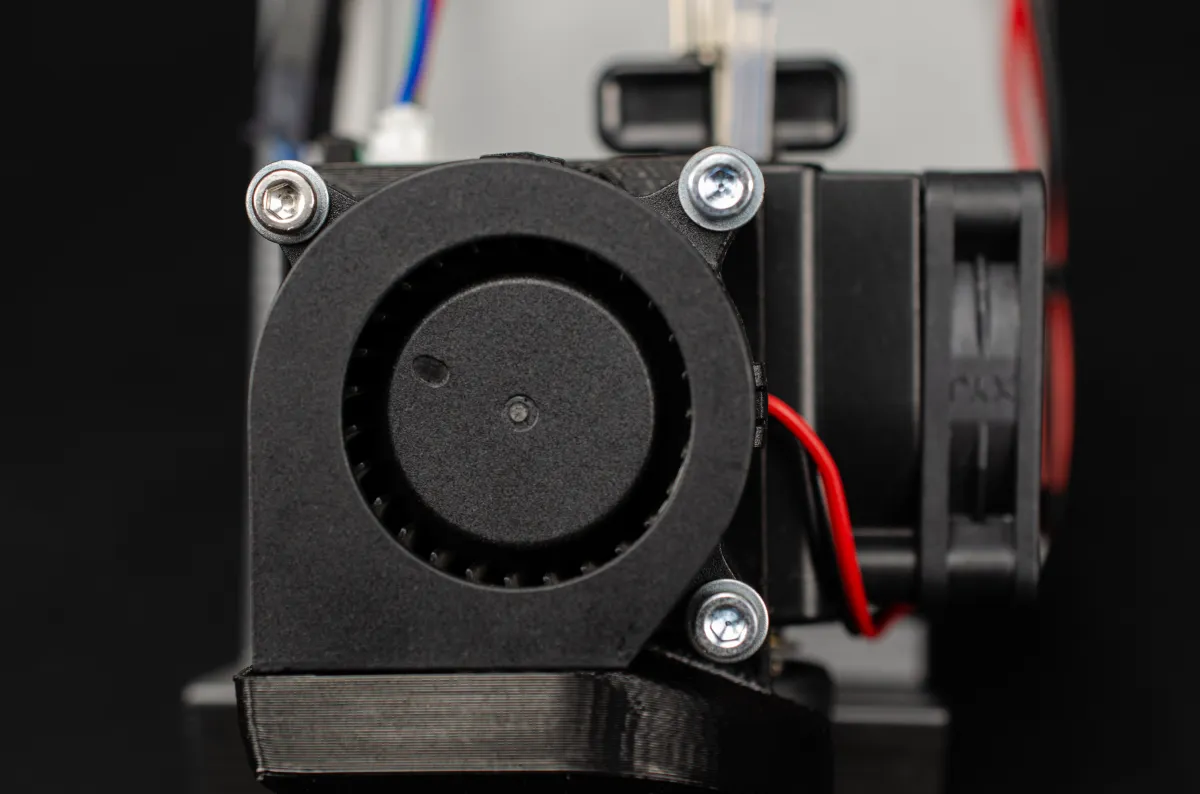

Filament Extruder: Precision and Flexibility in Every Detail
Indart3D’s Direct Drive HR filament printhead is designed for users who value precision and versatility in their projects. Ideal for a wide range of materials, this system supports filaments optimized for different applications, from durable parts to flexible components.
Thanks to its robust design and reliable operation, this printhead is ideal for industrial, educational, and creative environments, delivering consistent, high-quality results.
Filament Extruder: Precision and Flexibility in Every Detail
Designed to provide maximum compatibility and precision in 3D printing.
Compatibility
Compatible with spools of up to 8 kg, ideal for large-scale projects.
Supported Materials
ABS, ASA, NYLON, PET-G, PLA, PP, TPU Hardness, among others.
Temperature
Maximum temperature: 300 °C, ideal for advanced materials.
Interchangeable Nozzles
Compatible nozzle sizes: 0.15 mm | 0.25 mm | 0.4 mm (included) | 0.6 mm | 0.8 mm.
Filament Extruder: Precision and Flexibility in Every Detail
Designed to deliver maximum compatibility and precision in 3D printing.
Automatic Calibration: Ensures precise and consistent results with every print.
Advanced Connectivity: Wi-Fi, Ethernet, and Micro SD for efficient remote management.
7" Touchscreen: Full-color interface for simple and intuitive navigation.
Software Compatibility: Simplify3D, CURA, SuperSlicer, and support for standard formats such as STL, OBJ, and G-code.
With its enclosed design and reduced noise levels (44 dB during operation, 40 dB with the door closed), this printer is ideal for both industrial and research environments. Its robust structure and modular approach ensure maximum efficiency and reliability across a wide range of applications.
Characteristics
Specification
BigFoot Modular
BigFoot Modular (Pellet)
BigFoot Modular Dual
BigFoot Modular Dual (Pellet – Direct Drive HR)
BigFoot Modular Dual (Pellet – Pellet)
Number of Extruders
1 (Direct Drive HR)
1 (Pellets)
2 (Direct Drive HR – Direct Drive HR)
2 (Direct Drive HR – Pellets)
2 (Pellets – Pellets)
Compatible Nozzles
0.15 mm, 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
0.4 mm, 0.6 mm, 0.8 mm, 2.0 mm, 4.0 mm, 5.0 mm
0.15 mm, 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filamento: 0.15–0.8 mm
Pellet: 0.4–5.0 mm
0.4 mm, 0.6 mm, 0.8 mm, 2.0 mm, 4.0 mm, 5.0 mm
Included Nozzles
0.4 mm
0.8 mm
0.4 mm (2 uds)
Filamento: 0.4 mm
Pellet: 0.8 mm
0.8 mm (2 uds)
Materials
ABS, ASA, NYLON, PET-G, PLA, PP, TPU
ecommended pellet size:
Circular 3 – 5 mm
ABS, ASA, NYLON, PET-G, PLA, PP, TPU
Pellets: Circular 3-5 mm
Filaments: ABS, ASA, NYLON, PET-G, PLA, PP, TPU Hardness, TPU…
Recommended pellet size:
Circular 3 – 5 mm
Print Volume
500 × 500 × 500 mm
Printer Weight
92 kg
Printer Dimensions
1040 × 835 × 1044 mm
Heated Bed Temperature
Up to 100 ºC
Head Temperature
Up to 300 ºC
Calibration
Automatic
Structure
Closed with filters
Connectivity
Wi-Fi, Ethernet, Micro SD
Noise Emission
44 dB (40 dB with door closed)
Display
7” colour touch screen
Compatible Software
MacOS, Windows, Linux
Power level
120W, 600W, 1350W
Compatible Slicing Software
Simplify 3D, CURA, SuperSlicer
File Format
STL, OBJ, Gcode
Warranty
1 year
Package Weight
160 kg
Package Dimensions
1153 × 1000 × 1197 mm
